Features
• low insertion loss, 1.5 dB max.
• good selectivity, 1.76 typ. 20 dB/3dBBWratio
• rugged shielded case

Applications
•Transmitters / Receivers – IF stage
• Harmonic rejection
• Test equipments
• Military

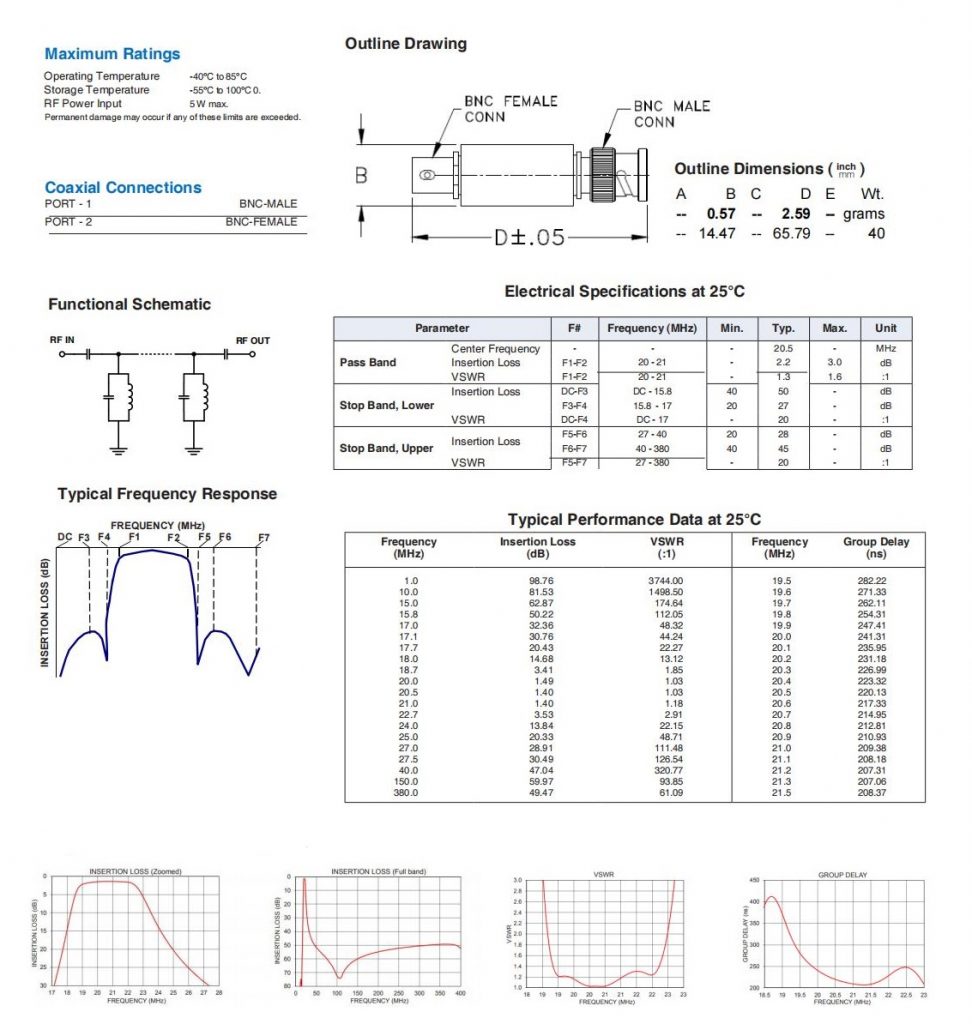

Maximum Ratings
Operating Temperature
-40°C to 85°C
Storage Temperature -55°C to 100°C
RF Power Input 0.5 W max.
Permanent damage may occur if any of these limits are exceeded.
