Features
• low insertion loss, 1.5 dB max.
• good selectivity, 1.76 typ. 20 dB/3 dB BW ratio
• rugged shielded case, hermetically sealed

Applications
• military hi-rel systems
• high rejection applications
• image rejection
• IF signal processing

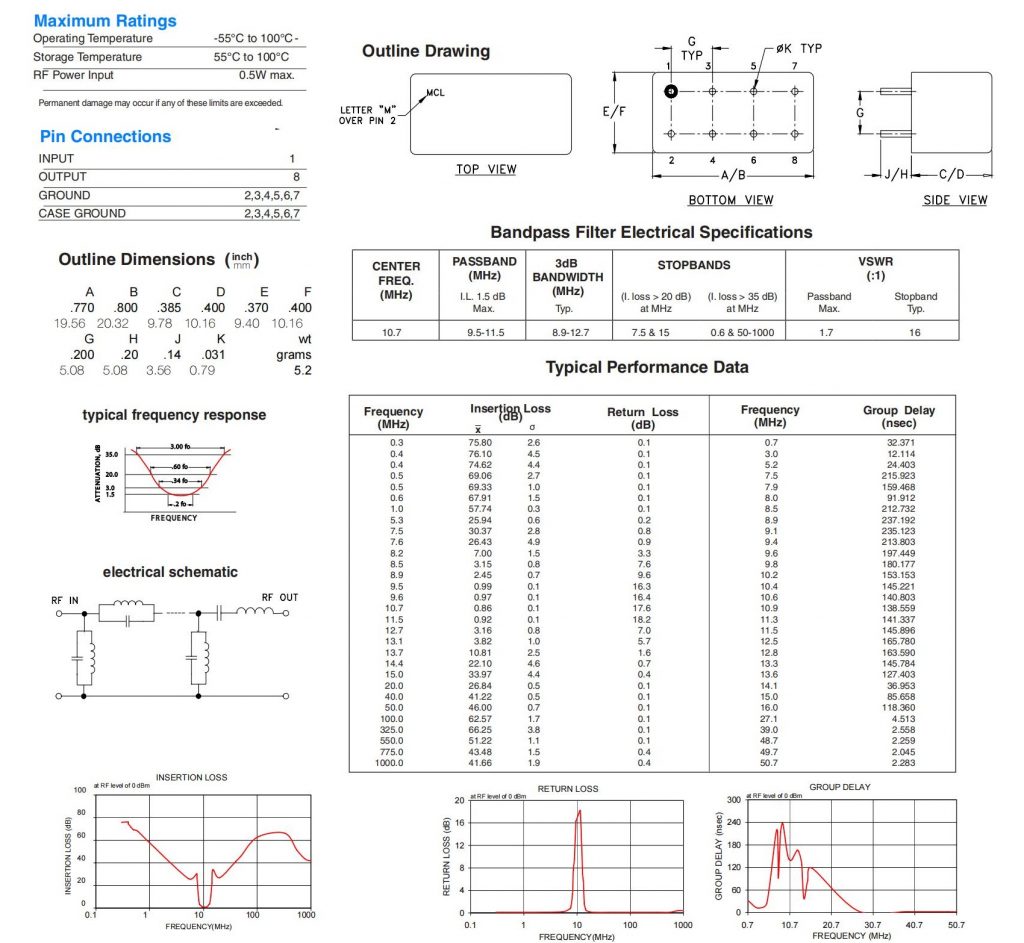

Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
RF Power Input 0.5W max.
Permanent damage may occur if any of these limits are exceeded.
